1968 Mustang Vacuum Diagrams
-

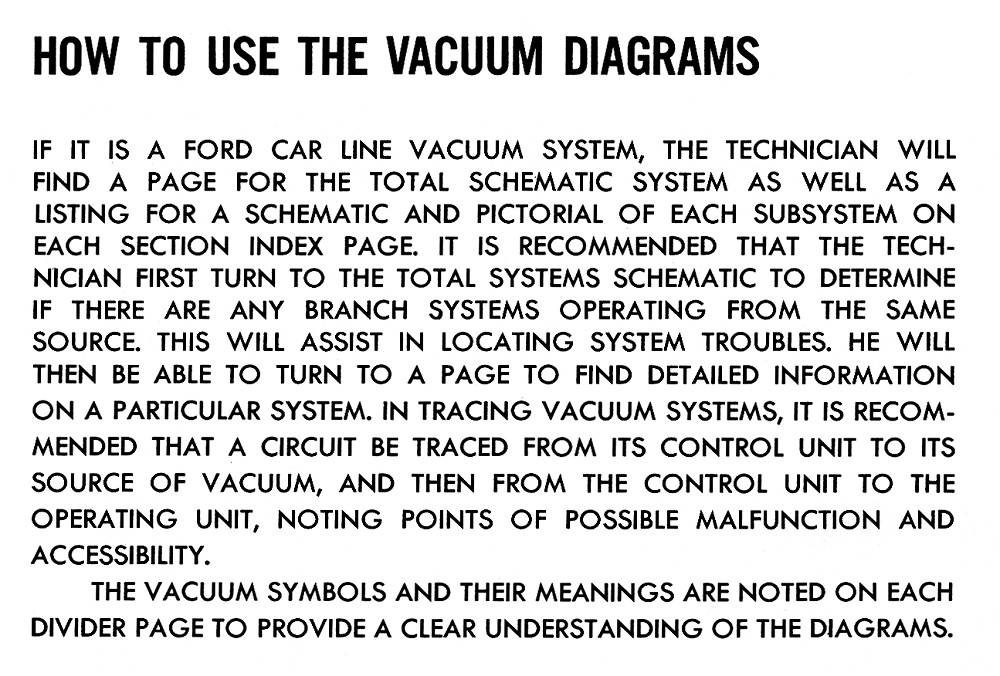

- Vacuum Introduction
-

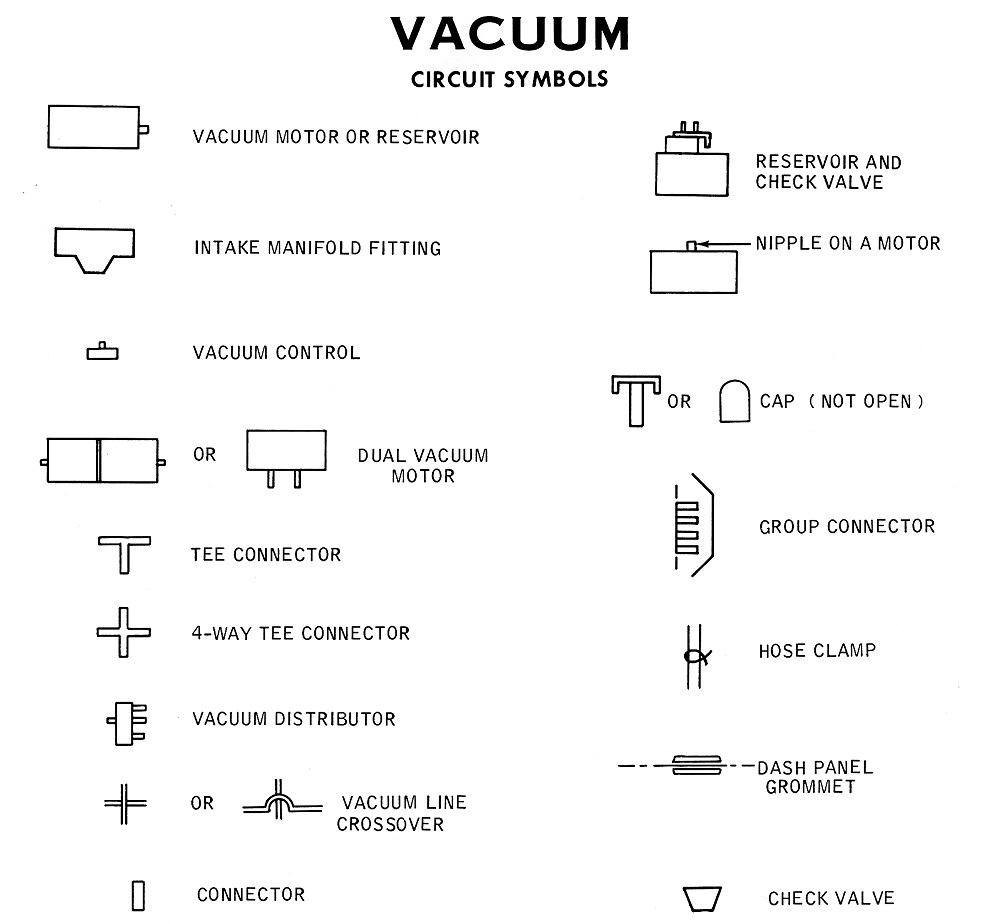

- V0 – Vacuum Symbols
-

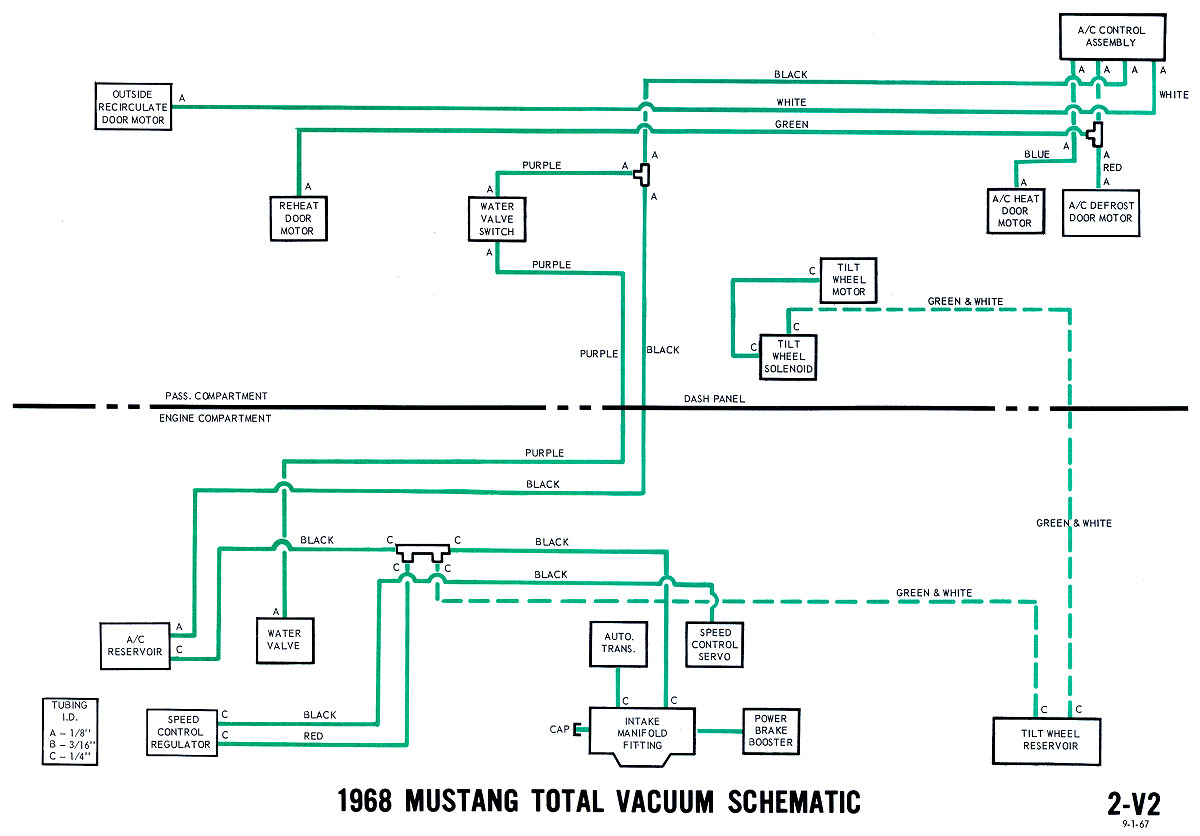

- V2 – Vacuum Schematic
-

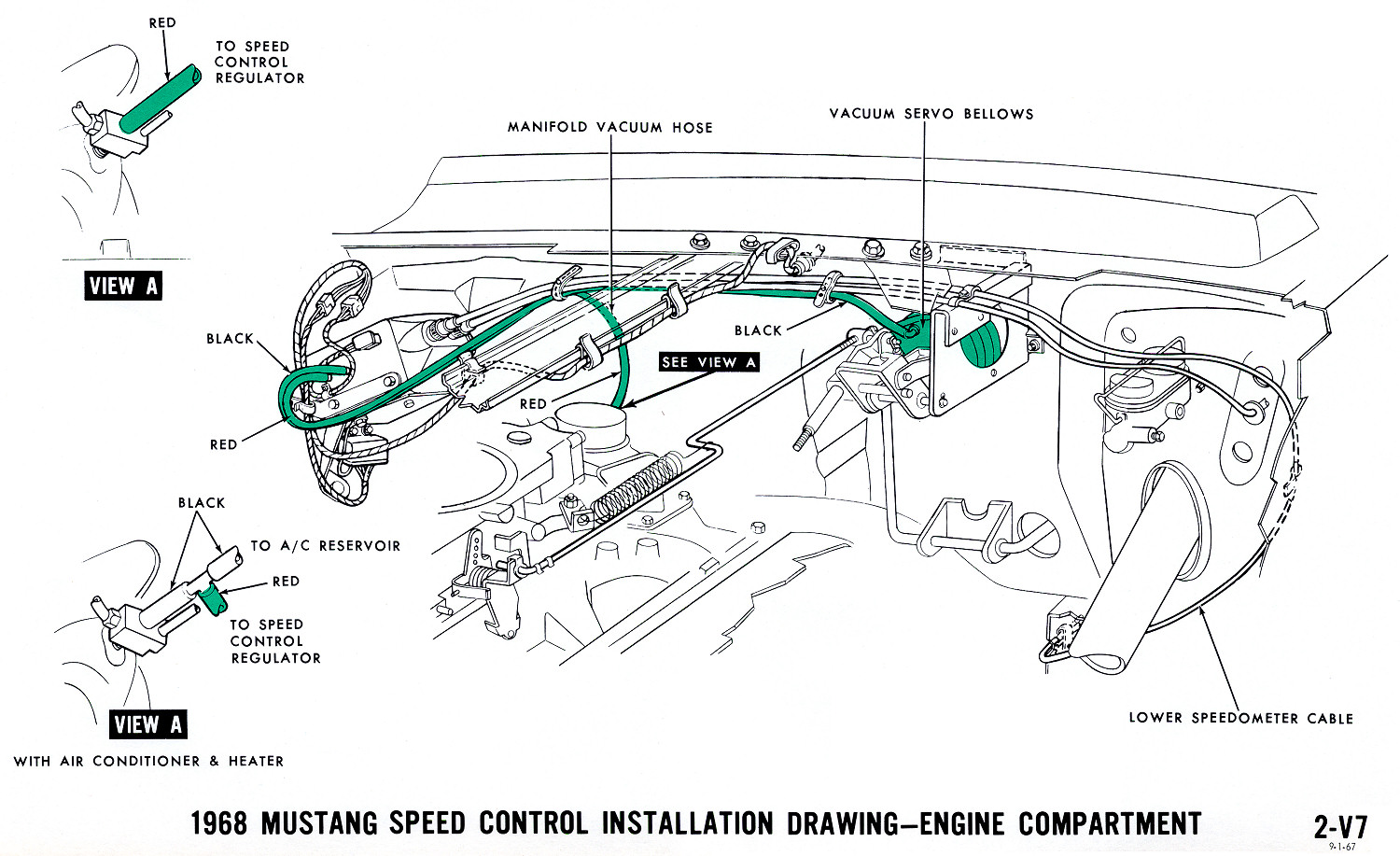

- V7 – Speed Control Engine Compartment – Installation Drawing
-
- V5 – Air Conditioner Engine Compartment
-

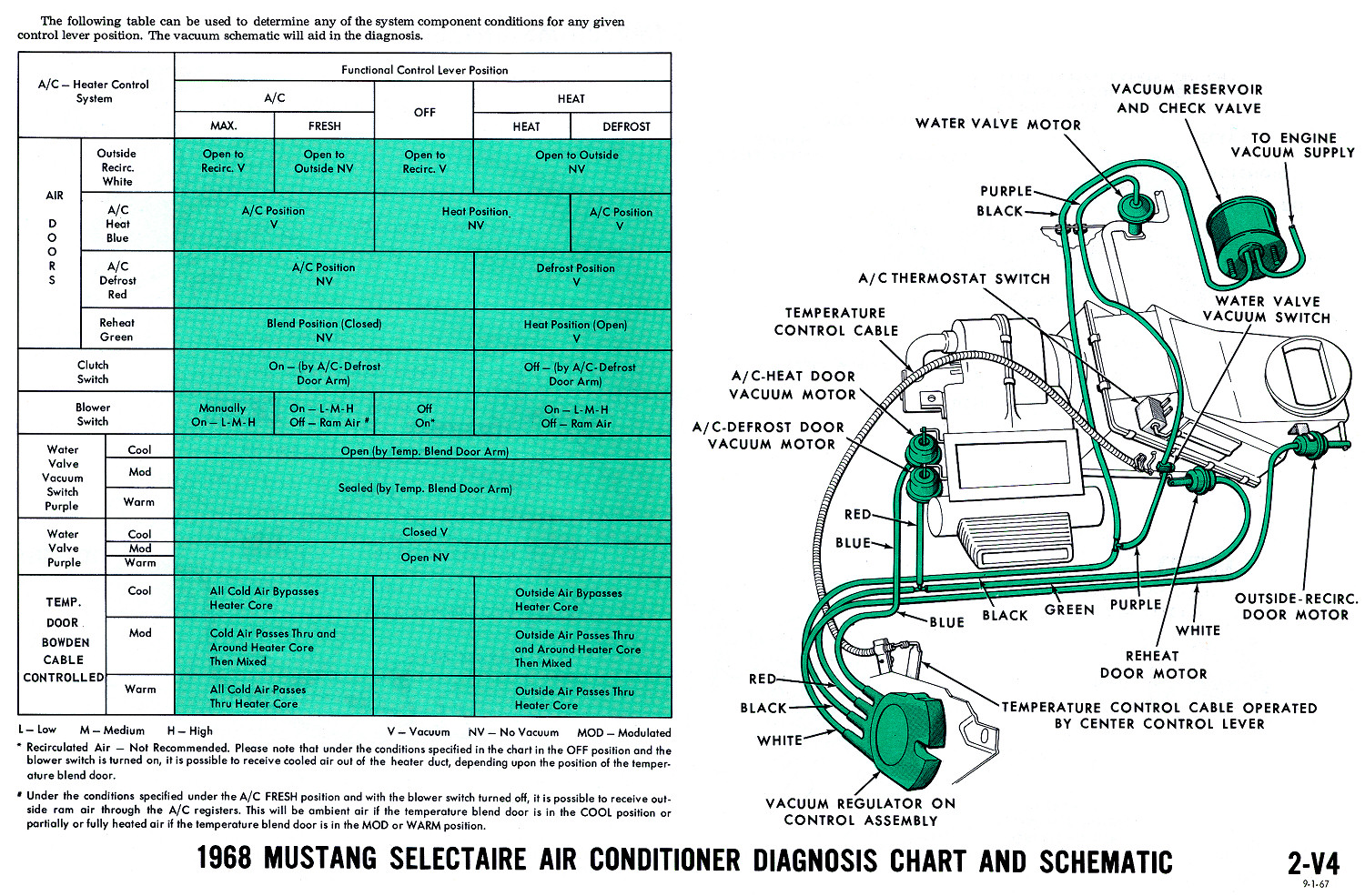

- V4 – Air Conditioner Diagnostic Chart and Schematic
-

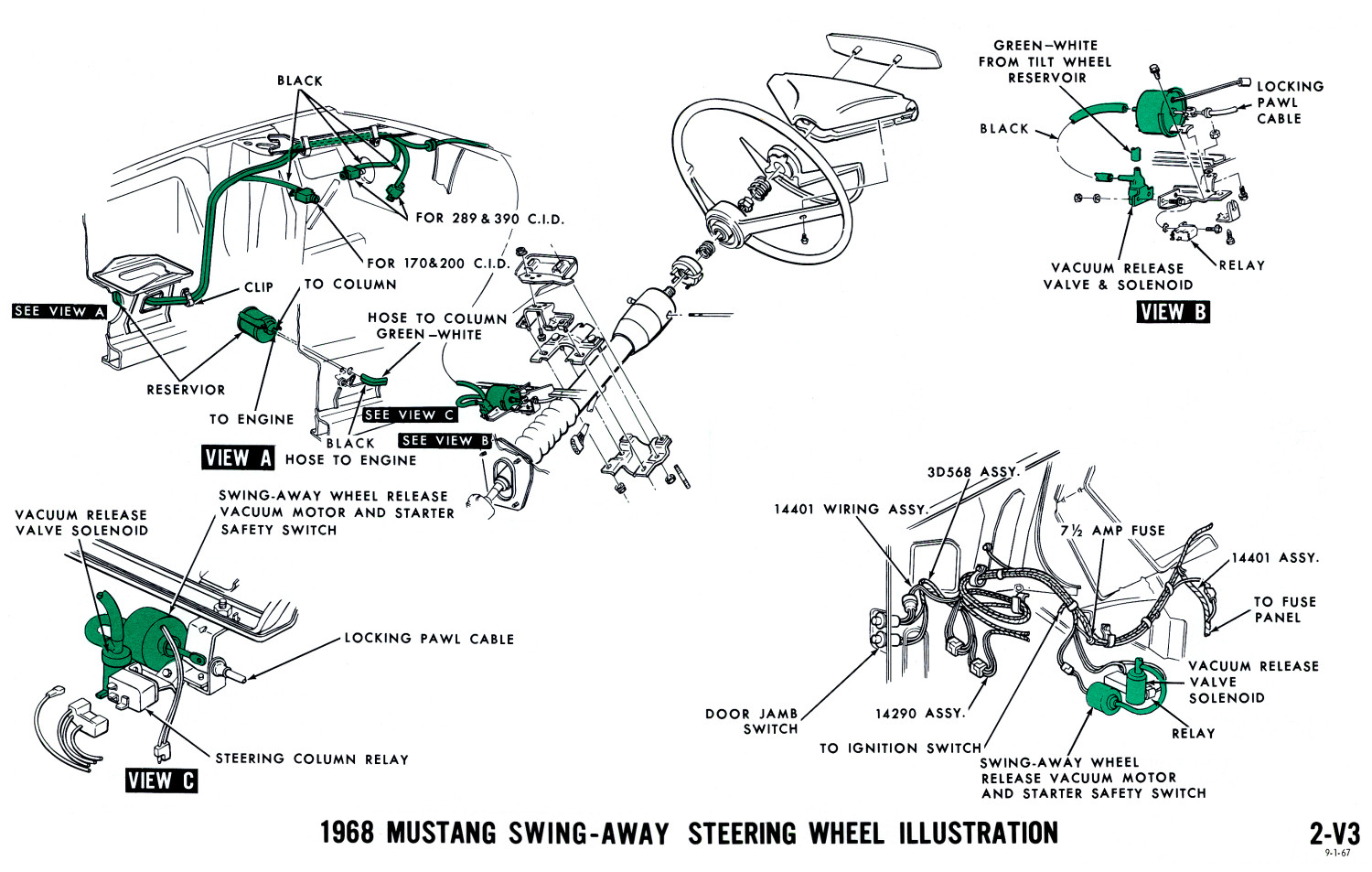

- V3 – Swing-Away Steering Wheel Illustration
-

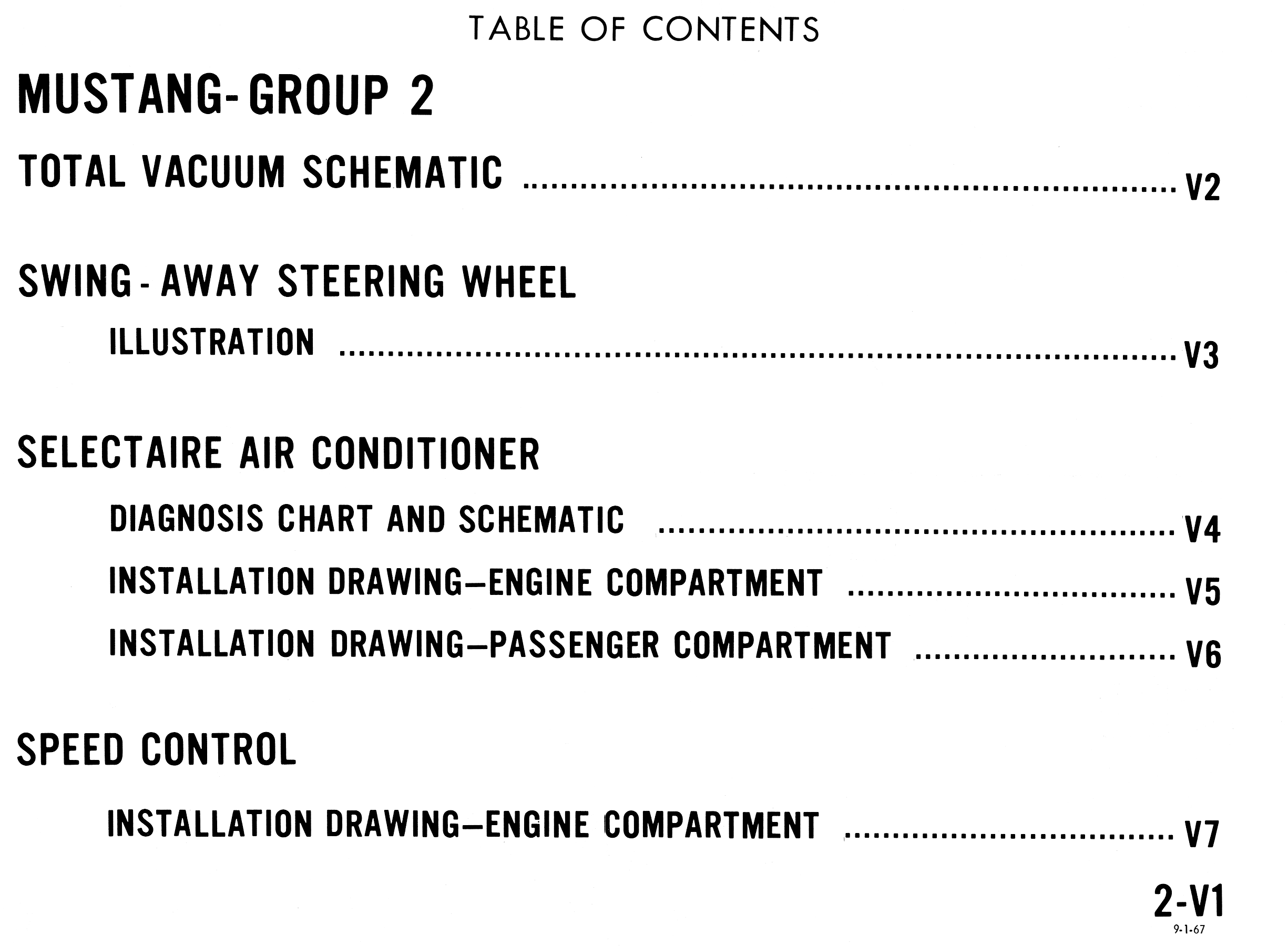

- Table Of Contents
-

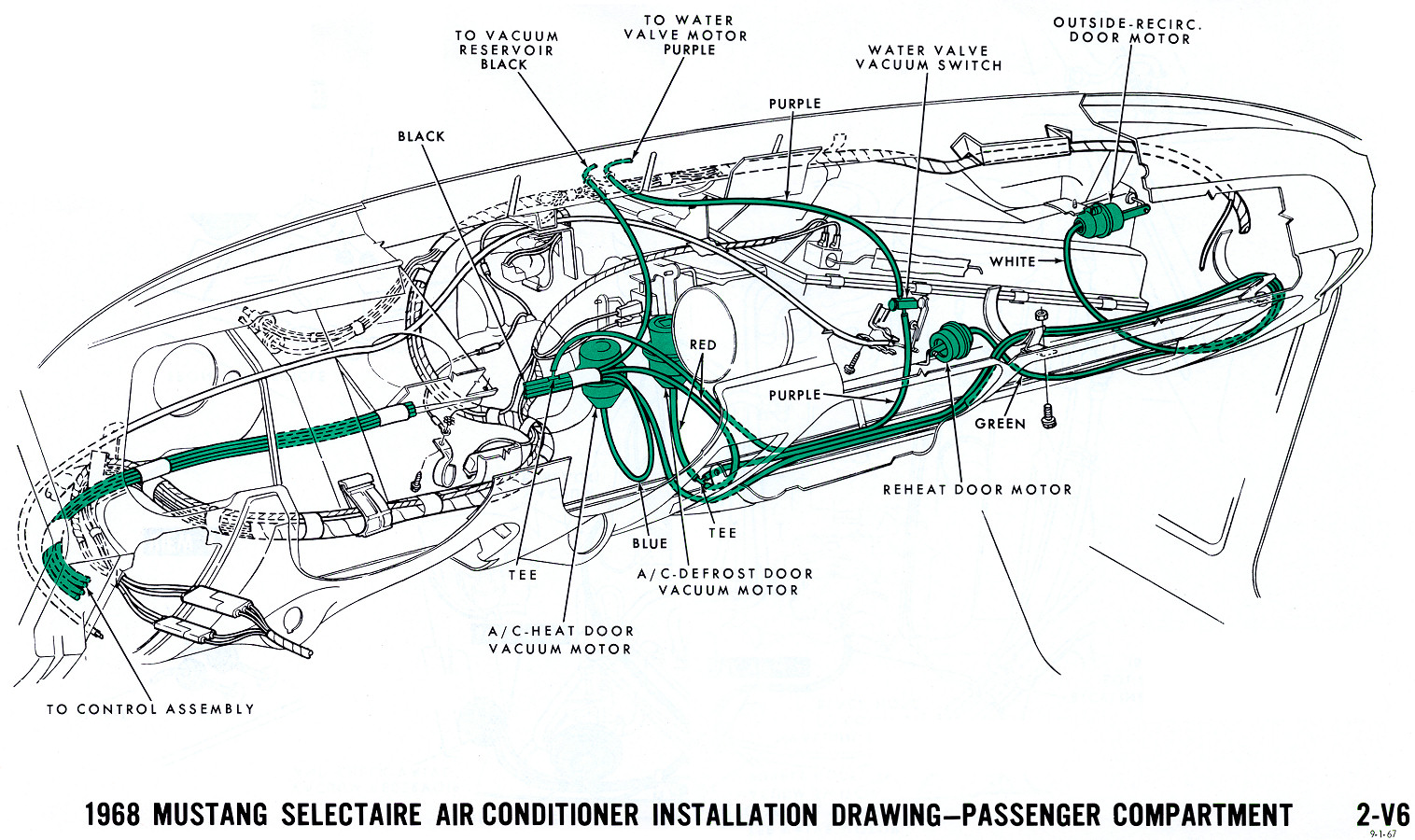

- V6 – Air Conditioner Passenger Compartment
*This is ‘internet’ quality information – use at your own risk … I have no idea if its correct or not
Sources
